mod_rec_fast_scheme_houc3::t_rec_fast_scheme_houc3 Type Reference

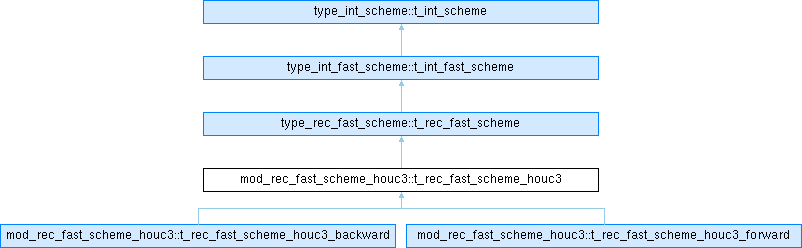

Inheritance diagram for mod_rec_fast_scheme_houc3::t_rec_fast_scheme_houc3:

Public Member Functions
procedure, pass(self)	apply_fast (self, values, preweights)
	Apply the corresponding scheme.
Public Member Functions inherited from type_rec_fast_scheme::t_rec_fast_scheme
procedure, pass	init (self)
	Init the scheme.
procedure	precompute (self)
	Precompute all weights for cells and faces.
Public Member Functions inherited from type_int_fast_scheme::t_int_fast_scheme
procedure, pass	init (self)
	Init the scheme.
procedure	fast_compute_stencil (self, preweight, step, steps, derivative)
	Compute the scheme's weights with a generic function. The generic version should works fine as it will only be called once when computing preweights.
procedure	precompute (self)
	Precompute all weights for cells and faces.
procedure	fast_interpolate (self, preweight, step, steps, values, derivative)
	Interpolate (apply the fast scheme).
procedure	apply_fast (self, values, preweights)
	Apply the fast scheme with given values and preweights.
procedure	compute_stencil (self, step, steps, derivative)
	Dummy function as it's not available for fast schemes.
procedure	interpolate (self, step, steps, values, derivative)
	Dummy function as it's not available for fast schemes.
procedure	apply (self, values)
	Dummy function (existing for architecture needs).
Public Member Functions inherited from type_int_scheme::t_int_scheme
procedure, pass	init (self)
	Declare a stencil base on its starting and ending relative indices.
procedure	compute_stencil (self, step, steps, derivative)
	Compute the stencil values.
procedure	apply (self, values)
	Apply a scheme to given discrete values at a point in the stencil (usualy the node at x_{i+1/2})
procedure	interpolate (self, step, steps, values, derivative)
	Interpolate at step with values. The steps and the values are given in interval 'index_start:index_end'.

Static Public Member Functions
procedure, nopass	index_start func_integer_value_m1
procedure, nopass	index_end func_integer_value_p1
Static Public Member Functions inherited from type_int_fast_scheme::t_int_fast_scheme
procedure(int_fast_scheme_compute_preweights), deferred, nopass	compute_preweights (stencil, nx, dx, shift, preweights)
	Compute the (pre)weights (has to be called before 'apply'). This is the principal function that has to be specified.
Static Public Member Functions inherited from type_int_scheme::t_int_scheme

Additional Inherited Members
Public Attributes inherited from type_int_fast_scheme::t_int_fast_scheme
type(t_int_grid_preweights_array_3d)	preweights_cells
	pre computed weights associated to the grid's cells
type(t_int_grid_preweights_array_3d)	preweights_faces
	pre computed weights associated to the grid's faces
Public Attributes inherited from type_int_scheme::t_int_scheme
type(t_stencil_1d)	stencil
	The stencil.
integer	size
	The size and half size of the scheme.
integer	hsize
integer	n_steps
logical	initialized = .false.

Member Function/Subroutine Documentation

apply_fast()

procedure, pass(self) mod_rec_fast_scheme_houc3::t_rec_fast_scheme_houc3::apply_fast	(	class(t_rec_fast_scheme_houc3), intent(in)	self,
		double precision, dimension(:), intent(in)	values,
		class(t_int_grid_preweights), intent(in)	preweights )

Apply the corresponding scheme.

Parameters

[in]	self	The scheme
[in]	values	The discrete (mean) values of the function
[in]	preweights	The precomputed weights (

See also

t_int_grid_preweights)

Precondition

The scheme has already been initialized

index_end()

procedure, nopass mod_rec_fast_scheme_houc3::t_rec_fast_scheme_houc3::index_end

staticvirtual

Implements type_int_scheme::t_int_scheme.

index_start()

procedure, nopass mod_rec_fast_scheme_houc3::t_rec_fast_scheme_houc3::index_start

staticvirtual

Implements type_int_scheme::t_int_scheme.

---

The documentation for this type was generated from the following file:

• src/lib/discretization/node_level_schemes/interpolation/grid_schemes/schemes/rec_fast_scheme_houc3.f90
